Capatect-Anputzprofil 694/10
₾17.40
Sealing profile with self-adhesive PE gasket strip and lateral protective lip, integrated reinforcing fabric stripe; removable protective strap with rated break point.
Description
Field of Application
Plastic profile for rainproof connection of reinforcement layers of Capatect ETICS Systems ETICS = External Thermal Insulation Composite System
Brit. term: EWI = External Wall Insulation
Am. term: EIFS = External Insulation and Finish System
Am. term: gage
Material Properties
- UV-resistant
- lateral protective lip
- attached stripe of reinforcing fabric
- Easy and safe mounting
- Strap with rated break point as splash guard for the window frame
- Adhesive strip for an optional solid fastening of protective sheets to cover the complete window surface
- No scratch marks on the frames
- Uniform width of joints after removing of protective strap
- separating knife cut is not required
Color
- Profile compound: white
- Reinforcing fabric: orange

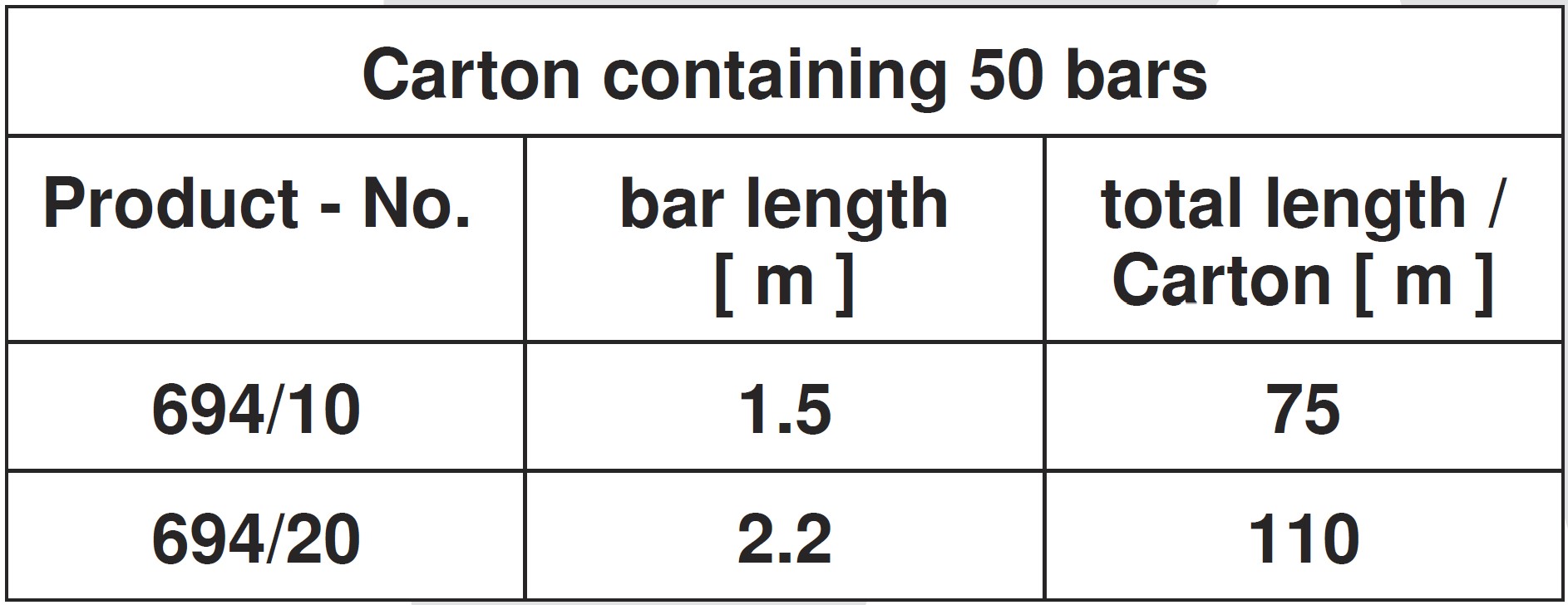

Packaging/Package Size
Storage
Horizontally, tensionless, protected from continuing solar irradiation, heating and mechanical stress.
Technical Data
- profile bar of thermoplastic synthetic resin (recyclable)
- Reinforcing fabric of Capatect-Gewebe fabric 650, width approx. 130 [ mm ]
- Profile dimension see draft below.
